Product Name:3KW Series Sealed Portable Charger
3KW Series Sealed Portable Charger
Application
Low Speed Electric Vehicle, Electric Motorcycle, Electric Tricycle, Forklift, Tourist Vehicle, Golf Car.
Product Description:
OEM No/Model: PA3K0N48FB50
Product introduction and application areas
3KW Series Sealed Portable chargers are designed with semi-sealed potting structure;it is suitable for lead-acid liquid-filled batteries,lead-acid maintenance-free batteries,lithium batteries,etc.;it can be used for battery charging of electric light trucks,sightseeing cars,patrol cars,dining cars,forklifts,etc.
Technical parameters
. Ac input voltage range: 180-260VAC;45-65HZ
. Power factor: 0.98
. Max Efficiency: 93% (Full Load)
. Noise: 65dB
. Protection grade: IP20
.Working temperature:-30~55
.Storage temperature:-40~95
Product specifications
.Dimensions:368*220*145.5mm
. Net weight:6.0kg
Optional advanced configuration
.Can be with CAN bus;
.Optional low pressure auxiliary 12v;
.Can be connected with three-color indicator light;
.Charging lock function(The vehicle power system can be locked through the relay during charging process);
.Can add CC, CP to meet the charging needs of various occasions;
Multiple protection
.Output over current protection .Input under voltage protection
.Output over voltage protection .Over temperature protection
.Output short circuit protection .Fully charge automatic shutdown
.Output no-load protection .CAN failure protection
.Output reverse connection protection

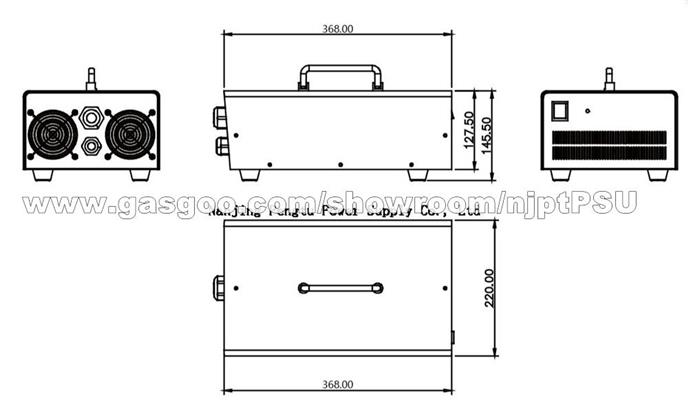

Mechanical Size&Model selection
Item |
Battery Rated Voltage |
Max Output Voltage |
Max output current |
PA3K0N48FB50 |
48V |
66V |
50A |
Remark:Only typical models are listed. For other models, please determine the power, input voltage and output voltage.
